Overview

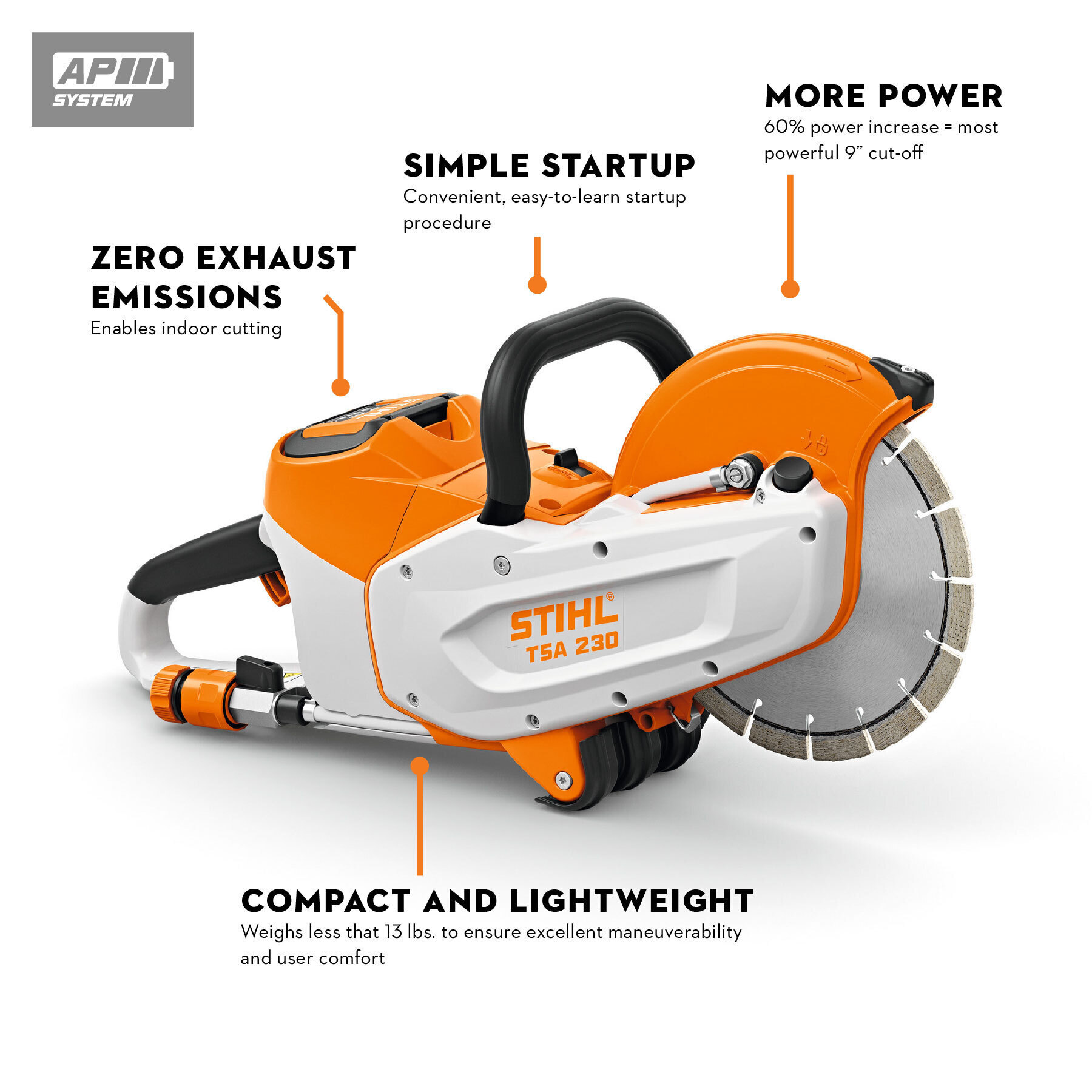

STIHL introduces another worlds firsta cut-off machine powered by 36-volt Lithium-Ion battery technology. The TSA 230 STIHL Cutquik cut-off machine starts instantly and changes the game for the jobsite, delivering maneuverability and solid cutting performance in a lightweight, compact package. Its onboard water control helps suppress dust while a toolless wheel lock prevents wheel rotation when removing the wheel attachment bolt. Because it is battery powered, there is no air filter to maintain. The TSA 230 even provides great valuepriced below its gasoline-powered counterpart. Groundbreaking innovation, grounded in quality engineering. Run time may vary based on battery type, charge level and capacity, model, operating style, and conditions. Batteries and chargers can be purchased separately or as a combined set with tool. See the TSA in action - Watch Video! View Our Usage Chart
Features
Sealed Control Unit
Sealed control unit for improved water resistance while wet cutting.
Magnesium Guard
The cutting wheel guard is made from lightweight and durable magnesium to improve maneuverability.
Spindle Locking Mechanism
The spindle locking mechanism allows the user to lock the wheel rotation for easier removal of the wheel.
Water Connection and Shut-Off Valve
The water connection is designed for the user to shut off the water when the unit is not in use and not waste water.
Sealed Belt Drive
Maintenance-free sealed belt drive.
STIHL QuickStop™ Wheel Brake
Allows extended guard adjustability by reducing the risk of injury from kickback when the guard has been adjusted to expose the top portion of the wheel
Electronic Coaster Brake
Stops wheel after use.
Lightweight Portability
This product is lightweight for easy portability, great maneuverability, and extended use.
Compact, Ergonomic Design
The compact, ergonomic design helps reduce user fatigue.
Brushless Motor
The brushless motor maximizes energy efficiency and requires virtually no maintenance, optimizing the life of the tool.
Specifications
| POWER SOURCE | Battery |
| ARBOR SIZE | 7/8 in. |
| BATTERY SYSTEM | AP System |
| RUN TIME (w/ AP 100) UP TO | 7 Minutes |
| RUN TIME (w/ AP 200) UP TO | 14 Minutes |
| RUN TIME (w/ AP 300) UP TO | 18 Minutes |
| RUN TIME (w/ AP 300 S) UP TO | 22 Minutes |
| WEIGHT | 8.6 lbs. |
| MAXIMUM CUTTING DEPTH | 2.75 in. |
| MAXIMUM WHEEL SIZE | 9 in. |
| VOLTAGE | 36V |
| WEIGHT (w/ AP 300) | 12.4 lbs. |
