Overview
The TS 420 STIHL Cutquik cut-off machine one of the best we've ever built. Helping you work longer and more comfortably, this cut-off machine comes with a 14" wheel, delivering a unique blend of performance and efficiency so you get the job done right. With the revolutionary X2 air filtration system, an anti-vibration system, and a lightweight design, you get low maintenance and more maneuverability. Its advanced engine technology also increases fuel efficiency and reduces emissions. (Abrasive wheel included. Diamond wheel (shown) is sold separately.)
Features
Water Connection
Water connection with shut-off valve and quick connector.
Ergonomic Grip
The ergonomic top-handle bar design provides an optimal comfortable grip in any working position.
STIHL ElastoStart™
The ElastoStart™ starter handle is a feature of STIHL. It is a starting grip with a built-in shock absorber that helps reduce the effort when pulling on the starter cord. The ElastoStart™ starter grip noticeably reduces the sudden peak forces (compression) normally felt during cranking. The forces which occur at the grip after the first compression stroke are smoothed out.

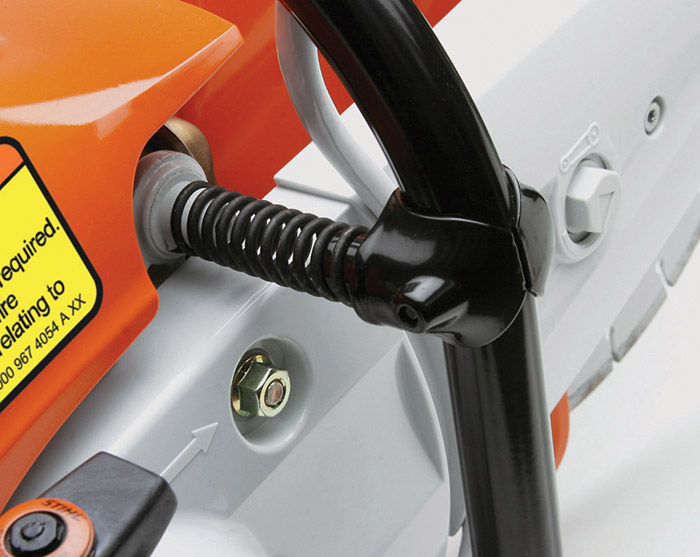

Anti-Vibration System
STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.
Bayonet-Style Filler Cap
Includes retainer for easy use, even with gloves on.
Semi-Automatic Belt Tensioning
With consistent semi-automatic re-tensioning, this feature increases the service life of the belts and shaft bearings
X2 Air Filtration System
The X2 Air Filtration System revolutionizes the cut-off machine industry by allowing air filters to last up to a year, based on cutting conditions. Outside air enters the system in a swirling motion, removing 80% of dust particles. This pre-cleaned air is then routed through the primary and secondary air filters before being sent into the engine. The X2 Air Filtration System is virtually maintenance free and maintains an incredible 99.96% cleaning efficiency.
IntelliCarb™ Compensating Carburetor
The IntelliCarb™ Compensating Carburetor is designed to automatically adjust the air/fuel ratio when the air filter becomes restricted or partially clogged and maintains the engine’s correct RPM. IntelliCarb™ uses air from the clean side of the air filter to control the diaphragm and flow of fuel. As the air filter becomes dirty and less air is available for the carburetor, the IntelliCarb™ system adjusts the fuel flow to compensate for the decrease in air flow. This is in contrast to typical carburetors that utilize this air from the “dirty” side of the air box.
Specifications
| ENGINE SPEED | 9,000 rpm |
| MAXIMUM CUTTING DEPTH | 4.9" |
| MAXIMUM SPINDLE SPEED | 5,350 rpm |
| MAXIMUM WHEEL SIZE | 14" |
| ENGINE POWER | 4.4 bhp |
| DISPLACEMENT | 66.7 cc |
| POWER SOURCE | Gas |
| ARBOR SIZE | .787 in. |
| WEIGHT | 21.2 lbs. |
| FUEL CAPACITY | 24 oz. |
