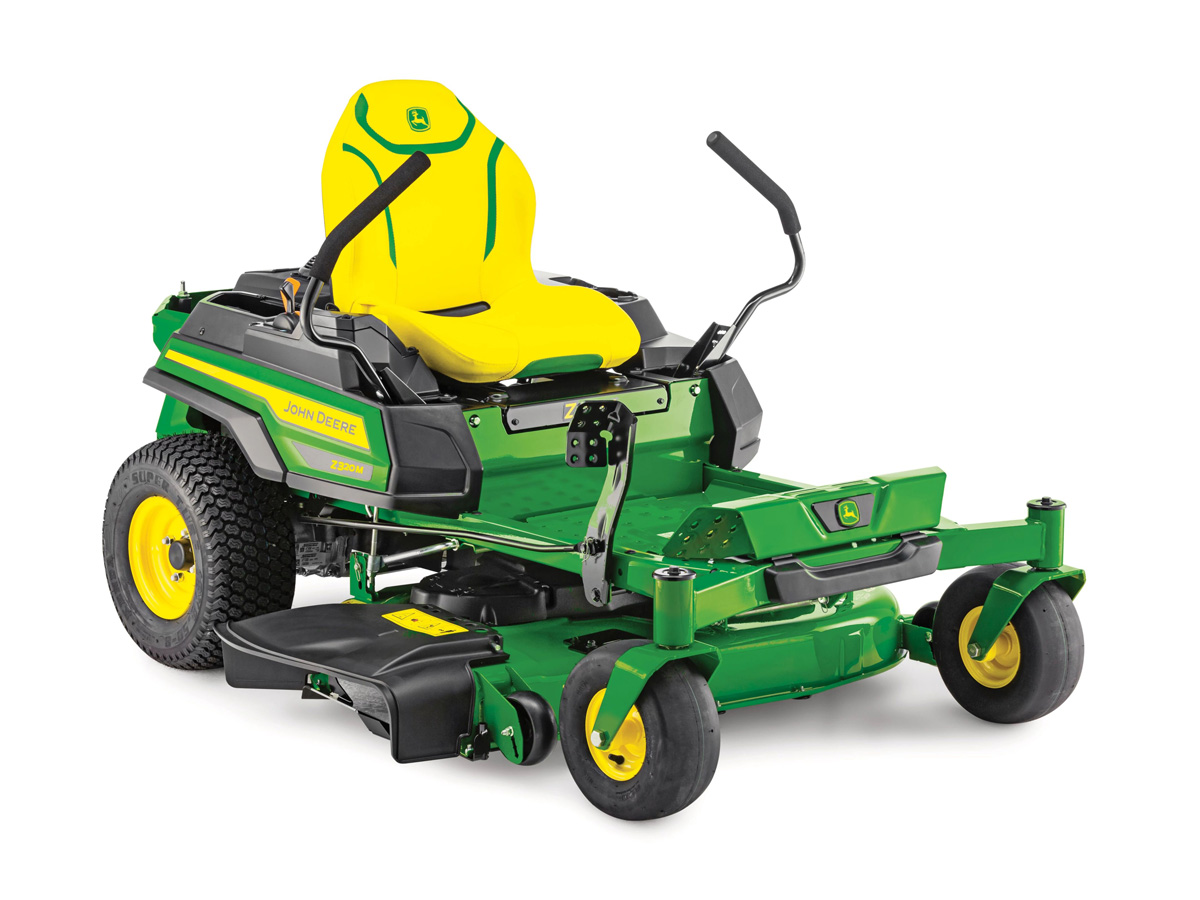

John Deere Z330m ztrak mower

A 23-hp (17.2-kW) V-twin engine with 44.3-cu in. (726-cc) displacement provides plenty of power and torque to handle tough mulching, mowing, and bagging conditions:

• V-twin cylinder design for greater torque, lower vibration, and improved sound quality
• Full-pressure lubrication and cast-iron sleeves to extend engine life
• Engine model FR691V
• Rear engine guard protects the engine from damage

Simplify maintenance with oil-drain tube and easy-to-access air, fuel, and oil filters. Oil drain tube can be opened without tools and used to direct the used oil into a catch pan.

The 48-in. (122-cm) Accel Deep Mower Deck is a forged-steel, deep, flat-top design that delivers excellent cut quality, productivity, cleanliness, durability, and versatility. Optimal performance and dispersion of clippings is provided, even at faster mowing speeds or in tall grass:

• 4.83-in. (12.3-cm) deep throughout the entire deck shell for optimum mowing and mulching performance
  • Optional MulchControlâ„¢ system provides superior mulching performance and versatility.
• Forged-steel design eliminates sharp edges and corners where material can build up and diminish mowing performance
• Mower deck is suspended from the vehicle for a smooth and level cut
  • Adjustable mower wheels, positioned just above ground level, help reduce scalping
• 0.25-in. (6.4-mm) cut-height increments allow the mower to be set at the desired cut height

Excellent cut quality

Deep mower-deck forging gives excellent cut quality. It allows the cut and suspended material room to exit the deck without getting recut:

• Reducing the amount of re-cutting enables more power to be used to cut incoming grass, which greatly improves mower capacity.
  • Helps maintain excellent cut quality at faster mowing speeds
• Clean flow of material out of discharge area prevents cut material from interfering with cutting the incoming grass, making it possible for the blades to cut incoming material cleanly.
• Even in mulching mode, cut evenness is improved compared to other designs because the additional depth allows for continuous circulation, optimal re-cutting, and an even distribution of clippings.

Productivity - getting the job done fast

Deep mower-deck forging gives high productivity, which gets the job done fast. It allows the cut and suspended material room to exit the deck quickly, reducing the amount of recutting so more power is available to process incoming grass:

• Greatly improves mowers capacity to maintain excellent mowing performance in difficult mowing conditions and at higher speeds

Large discharge opening is both high and wide to handle more material:

• Gives a smooth, even discharge of clippings at all mowing speeds
• Reduces the chance of plugging, especially important when operating in wet, thick, or dense grass

Cleanliness - for the mower and the operator

The flat-top shape of the deck forging is optimal for keeping itself and the operator clean:

• There are few places to catch and hold material on top and underneath the deck.
  • Top of deck stays cleaner, reducing time and effort needed for cleaning and service
  • Underside of deck is self-cleaning to maintain optimum performance without buildup of material to interfere with the flow of air and clippings
  • Less need to clean and remove buildup of material from underside deck
• The depth of the Accel Deep Mower Deck minimizes the amount of material that escapes from the front of the deck
  • Limited amount of material to drift onto the operator and mower deck
  • Even for material discharged out the chute, less recutting results in larger pieces that are less likely to end up on the operator
  • Mulching prevents the discharge of material completely and MulchControl makes mulching a practical solution for most mowing situations.

Cleaning a mower deck, both top and bottom, is one of the most frequent maintenance activities:

• The flat-top design reduces places for material to build up and makes material that does collect easy to remove.

MulchControl option

The MulchControl system for the 48A Mower Deck is an optional field-installed attachment and makes mulching practical for many mowing situations because it not only does an excellent job of mulching but it also allows the mower to be easily converted for times when it is more desirable to side discharge the lawn material. Advantages of mulching grass clippings include:

• A beautiful looking lawn
• Grass clippings not blown onto the operator, driveways, or flower beds
• Less fertilizer use
• Elimination of the effort needed to dispose of clippings

A wash port is provided to make cleaning the underside of the mower deck easy.

• Hose connector is included with the mower deck.

Superior durability is designed in

The 48A Mower Deck has strong spindle pockets, to keep the blades aligned, even after years of tough service:

• Forged from strong 10-gauge, 0.135-in. (3.4-mm) steel
• Ribs in the deck shell add strength where it is needed.
• The 48A has a 23 percent heavier overall weight than the Edgeâ„¢ Xtra 48-in. (122-cm) Mower Deck used on previous machines.

Mower wheels are double captured:

• Provides greater strength and durability for longer, trouble-free life.
• Single-bolt adjustment makes setting wheels to the correct height for the cutting height quick and easy.

Low-tension belt-drive design reduces the side load on engine lower bearings and mower deck bearings for longer life.

The 48A Mower Deck features a 5/8-in. (16-mm) diameter solid-steel rod side bumper that provides extra strength and protection.

Dual-stage E-coat and powder-paint coatings provide extra protection from rust.

Versatility - easy to change between side discharge and mulch modes

The 48A Mower Deck is designed for maximum versatility, providing the greatest ease in changing from one mower discharge mode to another:

• With MulchControl, changing from side discharge to mulching or vice versa is done with the simple flip of a lever.

How MulchControl works

MulchControl is an innovative, simple design that is easy to use and maintain:

• The MulchControl attachment includes baffles to control the flow of material under the deck.
  • The MulchControl baffle, or divider, between the left and middle spindles is about halfway down. The height is designed to balance the mulching and side-discharge modes.
  • When the MulchControl baffle is open, the divider between the left and middle spindles passes a portion of the material to the discharge opening, along with the material from the middle and right spindle areas.
  • When the MulchControl baffle is closed, the material stays within the deck and gets chopped into mulch and deposited in the turf.

• The MulchControl handle is located on top of the mower deck and used to open and close the discharge baffle.
  • The operator is required to get off the machine in order to engage or disengage mulch mode.
• Changing from mulching to side discharge or vice versa takes only a few seconds.

MulchControl is well-suited to the following mowing situations:

• Usually mulch, but side discharge when grass gets too long
• Usually side-discharge, but would like to be able to close the chute to control clippings
• Always mulch a main lawn, but often side discharge secondary lawns

MulchControl puts the operator in control of the clippings. The operator can have all the benefits of mulching with the ability to easily change to side discharge when needed.

While in the side-discharge mode, MulchControl still mulches about one-third of the material. Therefore, the side-discharge mode is essentially a partial-mulch mode. This can be an advantage as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:

• When cutting strong southern grasses, such as Zoysia and Bermuda
• When cutting in wet, high-growth conditions, such as those found in the Pacific Northwest United States
• When optimum bagging and lawn cleanup is desired

6.5-bu (230-L) Power Flow rear bagger

An optional 6.5-bu (230-L) Power Flow rear bagger material collection system (MCS) is available for use with the 48-in. (122-cm) Accel Deep Mower. It provides an efficient means of collecting grass clippings and leaves.

The bagger design provides modern styling, great bagging performance, cleaner operation, and easy-to-empty bags:

• Easy-to-attach Power Flow blower and chute
• Power Flow blower swings out for easy cleanout and cleanup
• Air exhaust duct
• Convenient spring-latch
• Airflow fill indicator
• Quik-Tatchâ„¢ mounting
• Sealed hopper top
• Loose-knit bags available

The 54-in. (137-cm) Accel Deep Mower Deck is a forged-steel, deep, flat-top design that delivers excellent cut quality, productivity, cleanliness, durability, and versatility. Optimal performance and dispersion of clippings is provided, even at faster mowing speeds or in tall grass:

• 4.83-in. (12.3-cm) deep throughout the entire deck shell for optimum mowing and mulching performance
  • Optional MulchControlâ„¢ system provides superior mulching performance and versatility.
• Forged-steel design eliminates sharp edges and corners where material can build up and diminish mowing performance
• Mower deck is suspended from the vehicle for a smooth and level cut
  • Adjustable mower wheels, positioned just above ground level, help reduce scalping
• 0.25-in. (6.4-mm) cut-height increments allow the mower to be set at the desired cut height

Excellent cut quality

Deep mower-deck forging gives excellent cut quality. It allows the cut and suspended material room to exit the deck without getting recut:

• Reducing the amount of recutting enables more power to be used to cut incoming grass, which greatly improves mower capacity.
  • Helps maintain excellent cut quality at faster mowing speeds
• Clean flow of material out of discharge area prevents cut material from interfering with cutting the incoming grass, making it possible for the blades to cut incoming material cleanly.
• Even in mulching mode, cut evenness is improved compared to other designs because the additional depth allows for continuous circulation, optimal recutting, and an even distribution of clippings.

Productivity - getting the job done fast

Deep mower-deck forging gives high productivity, which gets the job done fast. It allows the cut and suspended material room to exit the deck quickly, reducing the amount of recutting so more power is available to process incoming grass:

• Greatly improves mowers capacity to maintain excellent mowing performance in difficult mowing conditions and at higher speeds

Large discharge opening is both high and wide to handle more material:

• Gives a smooth, even discharge of clippings at all mowing speeds
• Reduces the chance of plugging, especially important when operating in wet, thick, or dense grass

Cleanliness - for the mower and the operator

The flat-top shape of the deck forging is optimal for keeping itself and the operator clean:

• There are few places to catch and hold material on top and underneath the deck.
  • Top of deck stays cleaner, reducing time and effort needed for cleaning and service
  • Underside of deck is self-cleaning to maintain optimum performance without buildup of material to interfere with the flow of air and clippings
  • Less need to clean and remove buildup of material from underside deck
• The depth of the Accel Deep Mower Deck minimizes the amount of material that escapes from the front of the deck
  • Limited amount of material to drift onto the operator and mower deck
  • Even for material discharged out the chute, less recutting results in larger pieces that are less likely to end up on the operator
  • Mulching prevents the discharge of material completely and MulchControl makes mulching a practical solution for most mowing situations.

Cleaning a mower deck, both top and bottom, is one of the most frequent maintenance activities:

• The flat-top design reduces places for material to build up and makes material that does collect easy to remove.

A wash port is provided to make cleaning the underside of the mower deck easy.

• Hose connector is included with the mower deck.

Superior durability is designed in

The 54A Mower Deck has strong spindle pockets, to keep the blades aligned, even after years of tough service:

• Forged from strong 10-gauge, 0.135-in. (3.4-mm) steel
• Ribs in the deck shell add strength where it is needed.

Mower wheels are double captured:

• Provides greater strength and durability for longer, trouble-free life.
• Single-bolt adjustment makes setting wheels to the correct height for the cutting height quick and easy.

Low-tension belt-drive design reduces the side load on engine lower bearings and mower deck bearings for longer life.

The 54A Mower Deck features a 5/8-in. (16-mm) diameter solid-steel rod side bumper that provides extra strength and protection.

Dual-stage E-coat and powder-paint coatings provide extra protection from rust.

Versatility - easy to change between side discharge and mulch modes

The 54A Mower Deck is designed for maximum versatility, providing the greatest ease in changing from one mower discharge mode to another:

• With MulchControl, changing from side discharge to mulching or vice versa is done with the simple flip of a lever.

How MulchControl works

MulchControl is an innovative, simple design that is easy to use and maintain:

• The MulchControl attachment includes baffles to control the flow of material under the deck.

  • The MulchControl baffle, or divider, between the left and middle spindles is about halfway down. The height is designed to balance the mulching and side-discharge modes.

  • When the MulchControl baffle is open, the divider between the left and middle spindles passes a portion of the material to the discharge opening, along with the material from the middle and right spindle areas.

  • When the MulchControl baffle is closed, the material stays within the deck and gets chopped into mulch and deposited in the turf.

MulchControl option

The MulchControl system for the 54A Mower Deck is an optional field-installed attachment and makes mulching practical for many mowing situations because it not only does an excellent job of mulching, but it also allows the mower to be easily converted for times when it is more desirable to side discharge the lawn material. Advantages of mulching grass clippings include:

• A beautiful looking lawn
• Grass clippings not blown onto the operator, driveways, or flower beds
• Less fertilizer use
• Elimination of the effort needed to dispose of clippings

• The MulchControl handle is located on top of the mower deck and used to open and close the discharge baffle.
  • The operator is required to get off the machine in order to engage or disengage mulch mode.
• Changing from mulching to side discharge or vice versa takes only a few seconds.

MulchControl is well-suited to the following mowing situations:

• Usually mulch, but side discharge when grass gets too long
• Usually side-discharge, but would like to be able to close the chute to control clippings
• Always mulch a main lawn, but often side discharge secondary lawns

MulchControl puts the operator in control of the clippings. The operator can have all the benefits of mulching with the ability to easily change to side discharge when needed.

While in the side-discharge mode, MulchControl still mulches about one third of the material. Therefore, the side-discharge mode is essentially a partial-mulch mode. This can be an advantage as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:

• When cutting strong southern grasses, such as Zoysia and Bermuda
• When cutting in wet, high-growth conditions, such as those found in the Pacific Northwest United States
• When optimum bagging and lawn cleanup is desired

6.5-bu (230-L) Power Flow rear bagger

An optional 6.5-bu (230-L) Power Flow rear bagger material collection system (MCS) is available for use with the 54-in. (137-cm) Accel Deep Mower. It provides an efficient means of collecting grass clippings and leaves.

The bagger design provides modern styling, great bagging performance, cleaner operation, and easy-to-empty bags:

• Easy-to-attach Power Flow blower and chute
• Power Flow blower swings out for easy cleanout and cleanup
• Air exhaust duct
• Convenient spring-latch
• Airflow fill indicator
• Quik-Tatchâ„¢ mounting
• Sealed hopper top
• Loose-knit bags available

The operator station is designed for operator comfort and convenience when operating all controls:

• Excellent visibility forward and to the trim side of the deck makes operation easy and comfortable for the operator.
• Controls are color coded for easy identification.
• Translucent fuel tank displays fuel level.
• Twin-lever controls adjust, using cut-height pin/socket, for convenience and operator comfort.
• A shock absorber dampens motion control lever movement to give smooth operation.

Comfortable seat

The M- and R-Series mowers have a cut-and-sewn seat with:

• 20-in. (51-cm) of height
• Thick foam to soften bumps
• Side-bolstering to stabilize the operator on uneven terrain
• Embroidered John Deere logo and green accents
• Standard armrests on R-Series models (armrests are optional on M-Series models)

Seat suspension

Two steel coil suspension springs under the seat absorb shocks when traveling over rougher areas to provide a smoother ride. The seat fore-aft position can also be changed without tools.

Cup holder and storage compartments

The cup holder is designed to hold common cup sizes securely

A storage compartment provides a place for the operator to keep safety equipment, a cell phone, etc.

Operator foot platform

Large foot platform helps the operator remain comfortable and secure:

• Volcano grips give a secure grip.
• Raised footrests at the front of the platform provide a comfortable area for the operator's feet.
• An attractive floor mat is standard on R-Series models and optional on M-Series models.

John Deere riding lawn mowers are equipped with a QR code label that links to an owner support website. The label can be found on the rear fender, to the left of the seat.

The owner support website is formatted for smart phones and available without setting up an account and password. The QR code includes the mower’s serial number, enabling the owner support website to provide a maintenance schedule, service parts, attachments, how-to guide, videos, warranty information, and an operator’s manual for the specific mower.

The owner support website also allows users to purchase service parts, schedule dealer service, purchase extended warranties, and download the Equipment Mobile app. The Equipment Mobile app enables users to maintain a shared digital service record with their dealer.

Convenient service interval decal

A convenient service interval decal provides basic maintenance information. It provides a quick reference for keeping recommended service up to date.

Mower deck access

The footrest area is hinged and easily raised for service to mower deck:

• No tools are needed to lift footrest
• Easy to clean grass off the top of the mower
• Provides convenient access to the mower drive

Engine service

The engines are easy to service, including changing the oil and the oil filter and servicing the air filter.

Accel Deep Mower Decks have several features that make them easy to service:

• Flat-top design minimizes places for debris to collect.
• Spring-loaded, flip-up belt guards make removing debris easy.
• Provision is provided for a standard, 3/8-in. (9.5-mm) ratchet wrench to be used for releasing belt tension when removing the drive belt.

Tie-down locations are provided for convenience and safety when trailering the machine.

Motion-control levers

The motion-control levers can be adjusted to three different height settings and eleven different fore-aft settings:

• Increased operator comfort
• Adjustable for more precise control of the machine

A standard shock absorber for the motion-control levers makes maneuvering ZTrakâ„¢ Mowers easy and comfortable:

• Shock absorber modulates the movement of control levers for smoother operation.
• Operator can smoothly and precisely control the machine.

On-board tracking adjustment from the operator seat is quick and easy. The included 13-mm wrench is used for adjusting tracking and the motion-control lever position.

Control panel

The operator control panel is conveniently located and easy to use. The following instruments and controls are included:

• Hour meter
• Ignition switch
• Power take-off (PTO) control
• Engine speed/choke control
  • A choke position is built into the engine speed control (E-Series models).
  • A separate choke lever is used (M- and R- Series models).

Automatic Park brake

The integrated park brake is automatically applied when steering levers are stowed outward and disengaged when motion control levers are placed into operating position.

Mower deck lift/cut-height adjustment

• Easily lift the mower deck using the foot lift pedal.
• A cut-height preset ensures the deck returns to the correct position.
• Mower deck cutting height adjusts from 1.25 to 4.5 in. (3 to 11 cm) in 0.25-in. (0.64-cm) increments for excellent cut quality and performance.

The foot-lift pedal also provides a convenient way to temporarily raise the mower deck over an obstruction while mowing.

Heavy-duty PTO clutch

A heavy-duty electric PTO clutch is controlled by a convenient, dash-mounted control. The PTO clutch is designed to operate through many on/off cycles.

Steering is easy with large front caster wheels

Motion-control levers are designed for comfortable and easy operation.

A shock absorber is included to dampen the movement of the control levers so any operator can make smooth, controlled turns.

Pneumatic caster wheels give a smoother ride and easier steering:

• Large 11x6-5 front caster wheels provide extra ride comfort and better steering control.
• Caster wheels have sealed bearings for long life and easy steering.

Controls are designed to promote safe operation

• Motion-control levers must be in the outward position for the engine to crank.

• Seat interlock switch disengages the mower when the operator leaves the seat.
• Engine will stall if the operator leaves the seat without the motion-control levers in the outward position and the park brake set.

Light Emitting Diode (LED) lights

LED lighting provides additional lighting when needed.

• Forward LEDs light the front of vehicle, mid LEDs illuminate the front and side of the mower deck
• Standard R-Series model, optional on E- and M-Series models
• E- and M-Series models include wiring to speed installation

ZTrak Mowers are designed around a heavy-duty formed and welded steel frame for strength and reliability. Large front caster wheels and large rear drive wheels provide several operator benefits:

• Smoother ride
• Better slope performance
• More operator comfort over uneven ground
• Better traction

The operator platform is roomy and uncluttered for maximum comfort, and the controls are convenient to use:

• Easy to get on and off the mower
• Ample legroom for comfortable operation
• Adjustable motion-control levers for height and position, enabling the operator to stay comfortable while using them
• Color-coded and logically placed controls

Styling is both functional and attractive

The styling of ZTrak Mowers is functional and attractive to appeal to residential owners who value product appearance and the easy, comfortable operation that comes with thoughtful control designs:

• Color-coded controls are not only attractive, but easy to find and use.
• Large foot platform, surrounded by frame rails, has a safe and inviting appearance and provides easy access for the operator.
• Contoured shape of the fenders provides improved visibility to the drive tires, minimizes storage space required, and adds to the stylish appearance of the vehicle.

Heavy-duty welded steel frame for reliability and long life

The ZTrak Mower frame is constructed of heavy-duty steel tubing for long-term durability:

• 2.5-in. x 2-in. (6-cm x 5-cm) steel tubing in front
• 1.5-in. x 2-in. (4-cm x 5-cm) steel tubing on sides

Front bumper

A front bumper protects the front of the mower from damage

• Standard M- and R-Series models, optional on E-Series models

Rear hitch

A rear hitch provides towing capability:

• Pull a trailer up to 113 kg (250 lb.) of weight
• Bolts to tubular frame for solid support
• Standard on M- and R-Series models, and optional on E-Series models

Dual transmissions efficiently power the ZTrakâ„¢ mower forward and reverse and give steering capability:

• Transmissions are set low in the vehicle for excellent hillside stability.

• Hydro-Gear® transmissions are reliable and durable.

  • Beefed-up 1-in. (2.5-cm) axles for greater strength
• Maintenance-free unitized transmissions are sealed and have no hose connections to leak hydraulic fluid.

Four-bolt hubs provide a reliable and convenient wheel-mounting system.

Tow-valve controls are provided for each transmission and located above the vehicle frame on either side of the engine:

• Easy to reach and use
• Allow the vehicle to be moved without the engine running

Hydro-Gear is a trademark of Hydro-Gear Limited Partnership AF Holding Company, a Delaware Corporation and Danfoss Power Solutions (US) Company, a Delaware Corporation.

The fuel tank holds 3 U.S. gal. (11 L) of fuel. It is located low on the left side of the machine:

• Fuel-fill opening is located low and angled for easy refueling.
• Large, 2-in. (5.1-cm) fuel-fill opening reduces the chance of spilling when adding fuel.
• Cap is tethered to the fuel tank to prevent the fuel cap from getting misplaced.

Translucent fuel tank displays fuel level.

A 3-year or 200-hour single-source, bumper-to-bumper warranty* is included for all John Deere Z300 ZTrakâ„¢ Mowers.

• The warranty is hassle free, with both the mower and the engine covered by a single warranty.
• If the mower is sold, the remaining warranty term is transferable to a new owner.

*Term limited to years or hours used, whichever comes first, and varies by model. U.S. and Canada only. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.

Overview

Keep your John Deere equipment running its best with the John Deere Equipment Mobile App. Download the app from the mobile device’s app store, then add all your John Deere equipment by scanning the serial number bar codes. Once your equipment is added, you can access all your product’s model, serial number, and model year information in one place. The app also provides maintenance, parts, and support resources that are specific to your serial number(s).

Find the right parts the first time

It is important to get the right parts the first time. When you load your equipment list, Equipment Mobile provides parts information specific to your serial number(s). This is helpful to you and your John Deere dealer, as some parts can vary by serial number range.

Plan, track, and coordinate maintenance with your dealer

Equipment Mobile includes comprehensive maintenance plans for each piece of your equipment. The maintenance plan screen keeps track of completed tasks, provides a place for your notes, and provides parts listings. You can also share your maintenance plan with your dealership, enabling tasks completed by the dealer to be included.

Operator’s manual in the palm of your hands

A machine’s operator’s manual is a go-to resource that is available in Equipment Mobile. You can search, view, and download a copy. The operator’s manual is specific to the serial number(s) of your equipment.

Smart Connectors

A smart connector links the mower to the Equipment Mobile App and transmits vehicle information via Bluetooth® wireless technology to provide:

• Engine hours, that enable maintenance reminders
• Key switch status and battery level to warn if the battery is low
• Fuel level - even when away from the mower, the app remembers the fuel level so you can make sure the mower is fueled when it is time to mow

Optional BUC11960 smart connector is for use with:

• S120, S130, S160, S170, and S180 Tractors
• Model year 2021 and newer S240 Tractors (serial number 880,001-)
• Z515E, Z530M, Z530R, and Z545R ZTrakâ„¢ Mowers

Hours, fuel level, key switch status, and battery level are updated whenever the Equipment Mobile device is in range of a mower with a BUC11960 smart connector.

One end of the wiring harness plugs into the back of the fuel gauge. The other ends plug into the smart connector and the tractor's wiring harness. Z500 ZTrak Mowers come with a dedicated connectivity connector, so the new wire harness is not needed.

Optional BUC10537 smart connector is for use with:

• Model year 2016 and newer Select Series X300 and X500 Tractors

Hours, fuel level, key switch status, and battery level are updated whenever the mower’s key is turned on and the Equipment Mobile device is in range of a mower with a BUC10537 smart connector. The X350R Tractor does not report exact fuel level, it only indicates if the mower is low on fuel.

One end of the wiring harness plugs into the back of a Select Series X300 or X500 Tractor instrument cluster. The other ends plug into the smart connector and the tractor's wiring harness.

The Z370R and Z380R Electric ZTrak Mowers include the smart connector in base equipment.

On Electric ZTrak Mowers the battery level, charging status, and hours are transmitted when the Equipment Mobile device is in range of the mower, and the mower is on or actively charging. Equipment Mobile can also update an Electric ZTrak Mower’s controller software.

A smart connector requires the Equipment Mobile App. The John Deere Equipment Mobile App can be found in the mobile device’s app store.

Bluetooth is a trademark of Bluetooth SIG, Inc.
